I'm an AFOL. I have a reasonable collection of LEGO from my childhood, but have continued to buy the occasional set. Right now my focus is on the Creator Expert vehicles and train sets.

LEGO MOCs and experiments in LeoCAD

Recently I've been using LeoCAD to design and render MOCs and experiments. LeoCAD is a LEGO CAD tool, one of the LDraw system of tools for designing and sharing LEGO creations. Subpages related to these MOCs and experiments:

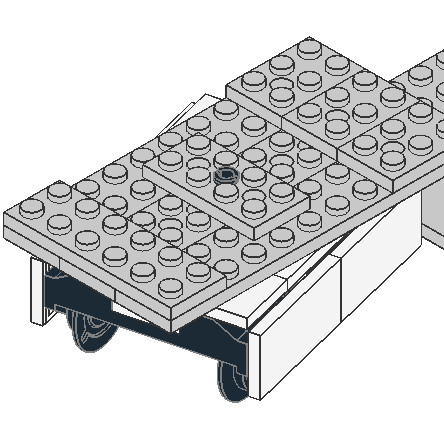

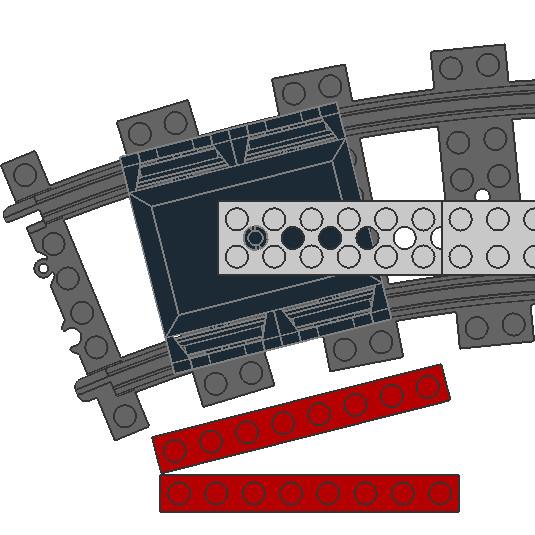

Experiments

MOCs

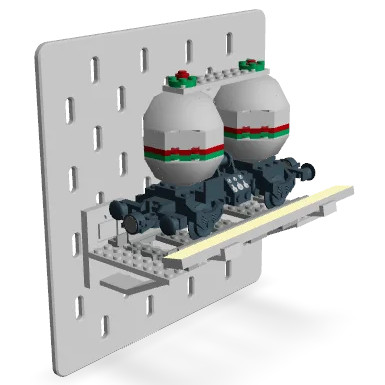

Showcases

Rendering models and submodels

I'm using a Makefile with some LeoCAD scripting to render images of the models and submodels. With an "ortographic" projection and flat shading, these renders look similar to official LEGO manual renders.

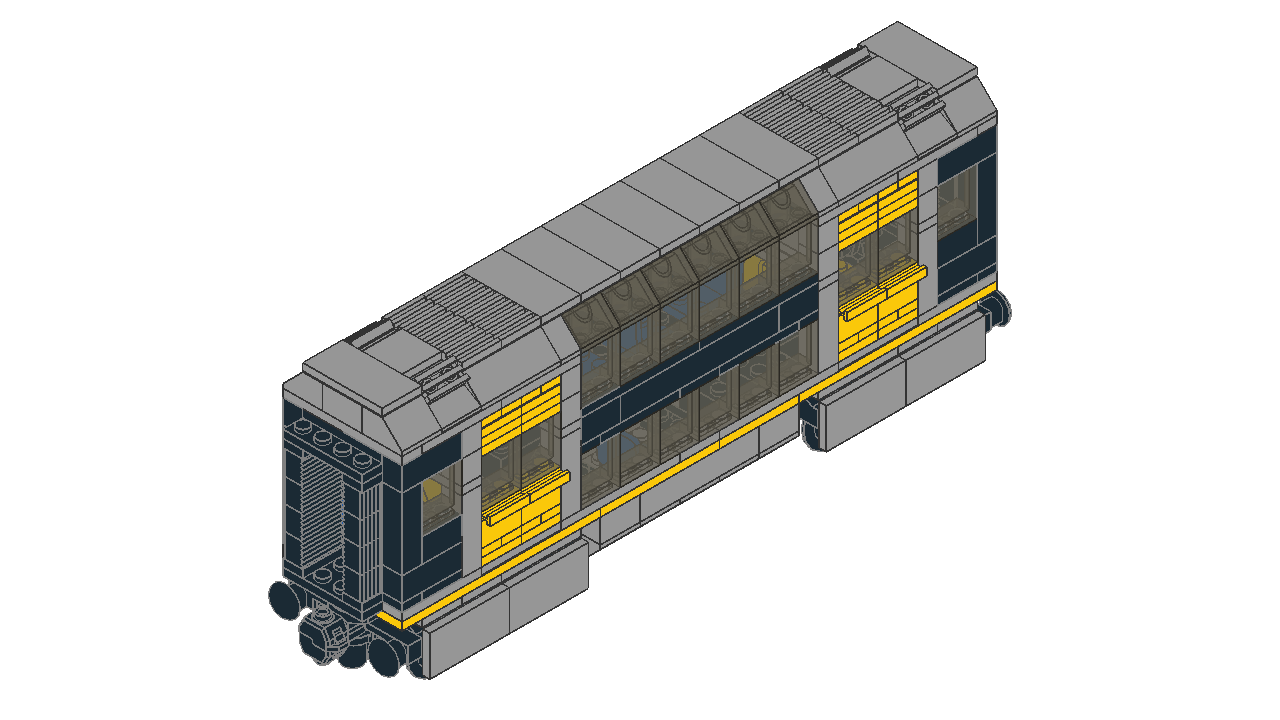

Elevated diagonal angle from 35°N 45°E
Elevated diagonal angle from 35°N 45°E

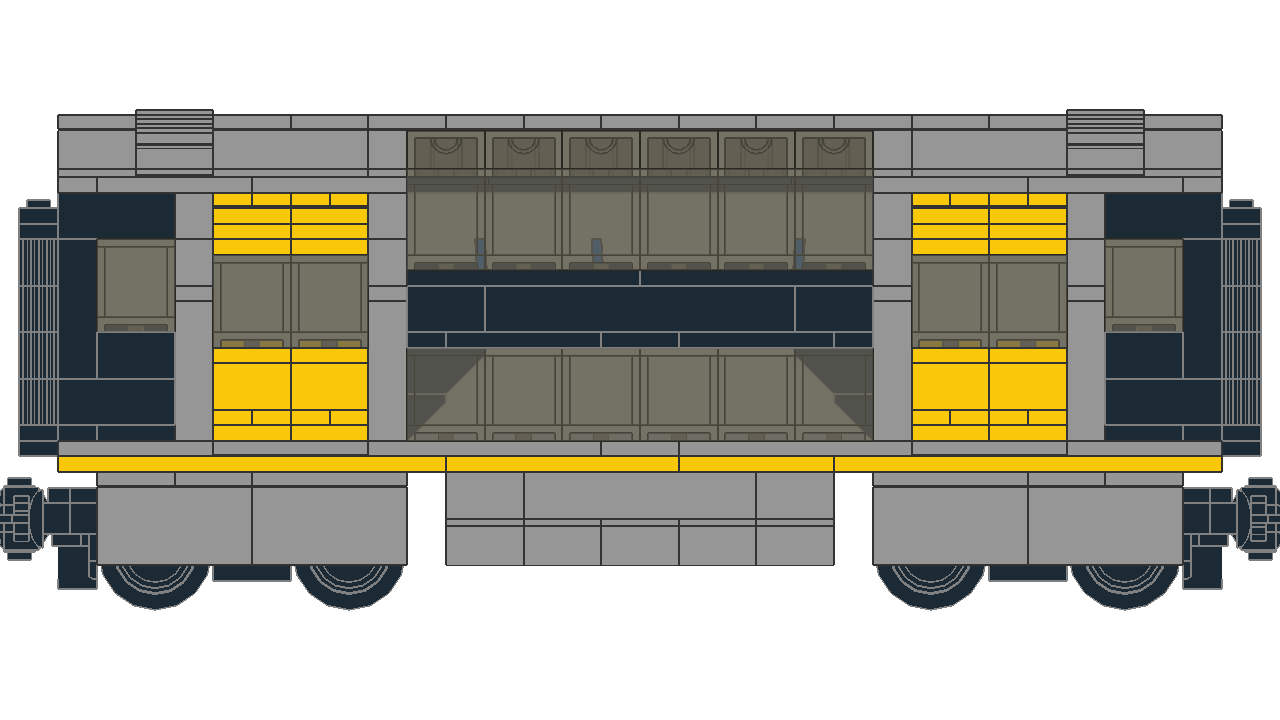

Side angle from 0°N 90°E
Side angle from 0°N 90°E

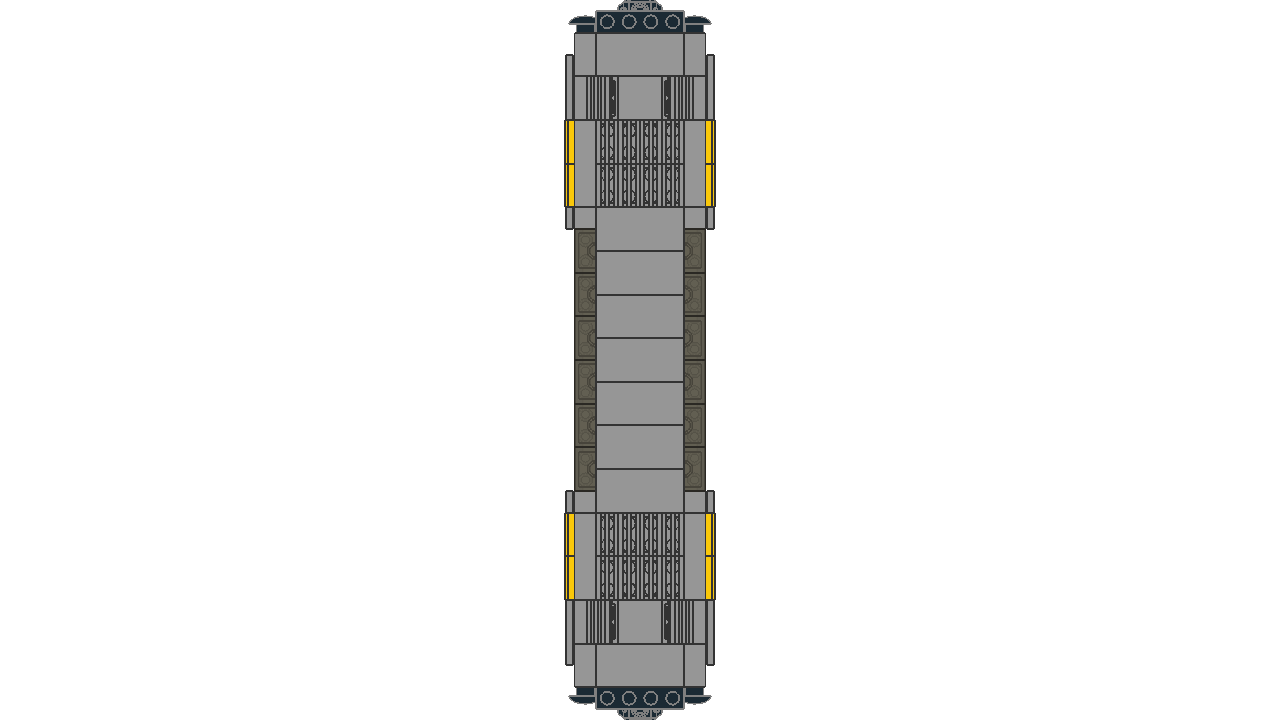

Top angle from 90°N 0°E
Top angle from 90°N 0°E

Makefile

    LEOCAD=/Applications/LeoCAD.app/Contents/MacOS/LeoCAD
FILE=main.ldr
# identify the submodel names, which must not contain spaces.
SUBMODELS=$(shell cat ${FILE} | grep "^0 FILE" | cut -d " " -f 3- - | cut -d "." -f 1 -)

test:
    echo ${SUBMODELS}

render-all:
    for submodel in ${SUBMODELS}; do \
        SUBMODEL=$submodel make render-submodel ; \
    done

render-submodel:
    # top and bottom
    SUBMODEL=$SUBMODEL LAT=90  LONG=0   make render-submodel-angle
    SUBMODEL=$SUBMODEL LAT=270 LONG=180 make render-submodel-angle
    # sides
    SUBMODEL=$SUBMODEL LAT=0   LONG=0   make render-submodel-angle
    SUBMODEL=$SUBMODEL LAT=0   LONG=90  make render-submodel-angle
    SUBMODEL=$SUBMODEL LAT=0   LONG=180 make render-submodel-angle
    SUBMODEL=$SUBMODEL LAT=0   LONG=270 make render-submodel-angle
    # elevated diagonals
    SUBMODEL=$SUBMODEL LAT=35  LONG=45  make render-submodel-angle
    SUBMODEL=$SUBMODEL LAT=35  LONG=135 make render-submodel-angle
    SUBMODEL=$SUBMODEL LAT=35  LONG=225 make render-submodel-angle
    SUBMODEL=$SUBMODEL LAT=35  LONG=315 make render-submodel-angle

render-submodel-angle:
    mkdir -p images
    ${LEOCAD} \
        -i images/${SUBMODEL}-${LAT}-${LONG}.png \
        -s ${SUBMODEL}.ldr \
        --camera-angles ${LAT} ${LONG} \
        --shading flat \
        -w 1280 -h 720 \
        --line-width 2 \
        --orthographic ${FILE}

export-all:
    for submodel in ${SUBMODELS}; do \
        SUBMODEL=$submodel make export-submodel ; \
    done

export-submodel:
    ${LEOCAD} \
        --export-collada ${FILE}.dae \
        -s ${SUBMODEL}.ldr ${FILE}
    blender --background --python dae2glb.py -- ${FILE}
