Cavity door guide

2025-02-23

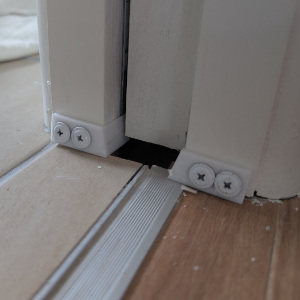

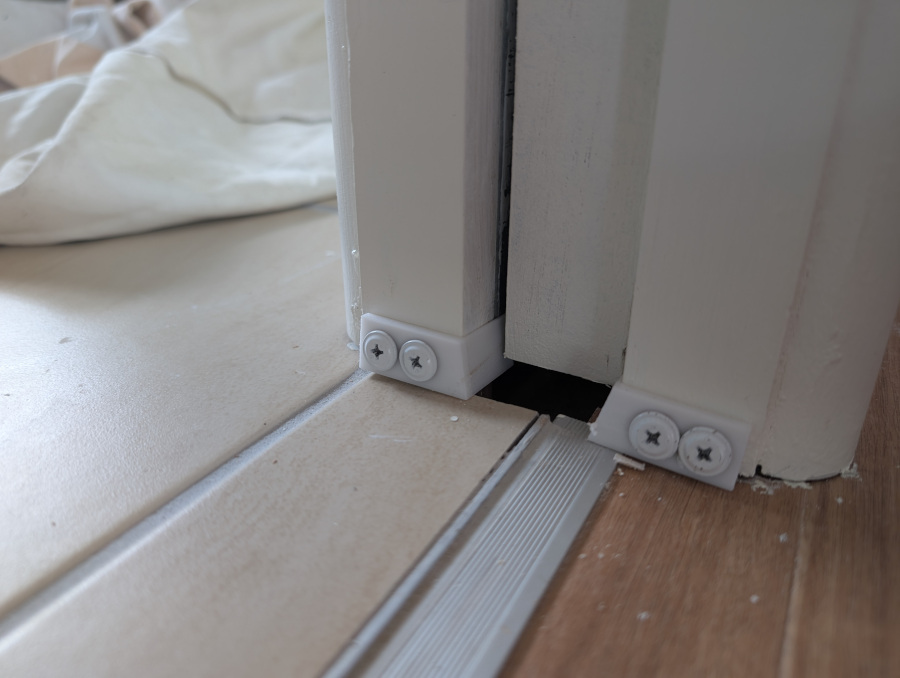

Cavity door guides installed

Downloads

Or check it out on Thingiverse.

Design

The supplied door guides for Inwall cavity frames are relatively shallow, traveling 15mm into the cavity. If you're using a flush pull door with a door ejector (like the Jexis door ejector), it's possible that the door will clip behind the end of the guide and snap it off. This design travels 26mm into the cavity, preventing that issue from occurring. Print with white PETG for best results.
